OVERVIEW

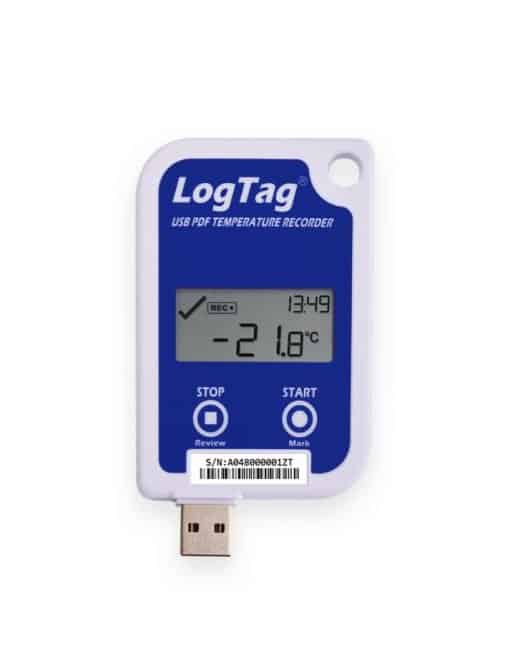

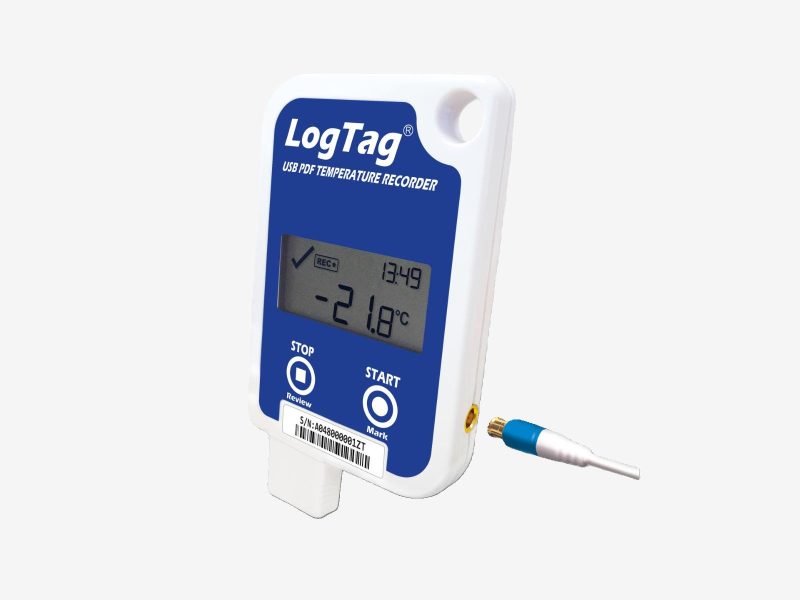

The LogTag® UTRED-16 is compatible with all external probes from the ST100 range, and the extension cable, however, is a mandatory accessory for it to operate correctly.
The display shows recording status, current temperature, alarm status of up to six user-configurable alarms and duration of any temperature excursions.
When the UTRED-16 is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded temperature data and alarms can be automatically generated without the need for extra accessories and proprietary software.
For more detailed data analysis, the UTRED-16 also creates an encrypted data file compatible with LogTag Analyzer® operating software and data management options.
PRODUCT HIGHLIGHTS
- Display showing temperature and alarm status of up to six alarms.
- ST100 probe is a mandatory accessory for the UTRED-16F to operate correctly.
- Cost effective multi-use format with a two year battery life.
- Automatic generation of a PDF report as a permanent record of the data.
- UTRED-16 CDC / VFC Kit available.
TECHNICAL SPECIFICATIONS
| Product Model | UTRED-16F (Fixed Battery). |
| Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). |
| Rated Temperature Reading Resolution | Better than 0.1°C (0.2°F) for -30°C to +60°C (-22°F to +140°F). Better than 0.2°C (0.4°F) for -40°C to -30°C (-40°F to -22°F). Better than 0.5°C (0.9°F) for +60°C to +99°C (+140°F to +210°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 72 hours. |
| Recording Indication | “REC” symbol on LCD. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured). |
| Environmental | IP61 (when vertically mounted or hung with USB dust-cap in place). |
| Power Source | CR2450 3V LiMnO2 (Fixed battery). |
| Battery Life | 1 year storage, 2 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | USB 2.0, A-type plug. |
| Software | PDF Reader, LogTag® Analyzer 3.1.9 or higher. |
| Multi-language Support | Multi-language support for English, Spanish, French, Russian and German. |
| PDF Report | One page report with trip and alarm summary. Multi-page report with list of readings, including date and time. |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
| Weight | 39g. |
| Case Material | Polycarbonate. |
